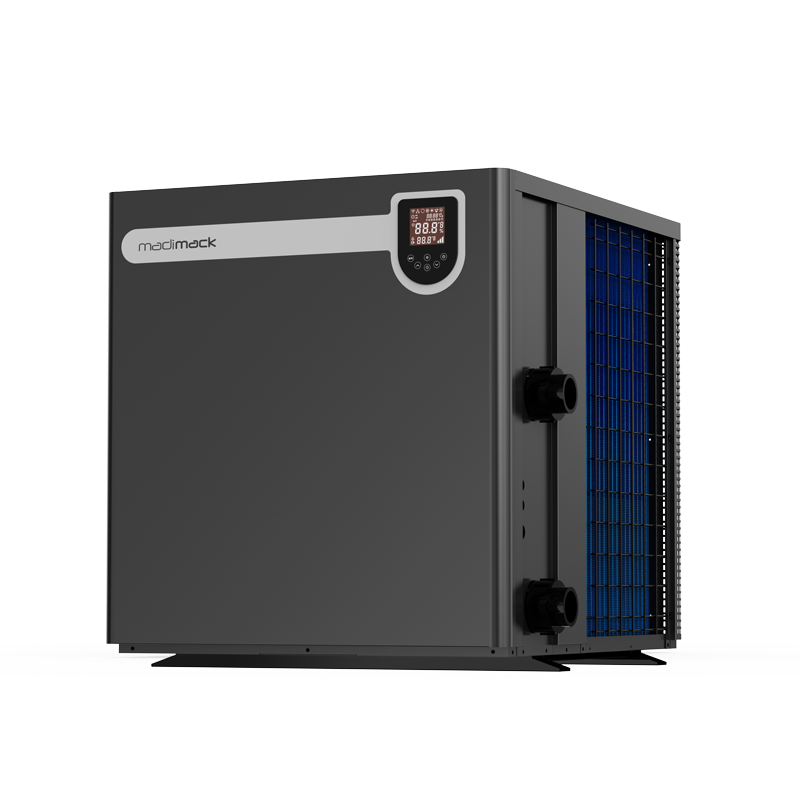

Madimack Eclipse Plus 160 16.5kW Pool Heat Pump

Overview

The Madimack InverECLIPSE Plus heat pump is the perfect choice for pool owners looking for cutting-edge efficiency, performance, and convenience. Built with a compact, space-saving design and a host of advanced features, the InverECLIPSE Plus is engineered to meet the demands of modern living while delivering unparalleled heating and cooling performance.

Whether you want to extend your pool season into winter or maintain a perfectly cool pool during summer, the InverECLIPSE Plus delivers reliable operation down to -10°C. Its marine-grade aluminium casing and innovative twisted titanium heat exchanger ensure durability and energy efficiency, while the built-in Wi-Fi connectivity lets you control the system anytime, anywhere.

With features like a soft start to protect electrical systems, a full stepless DC compressor for quieter operation, and smart defrosting technology, the InverECLIPSE Plus is designed to make your pool heating experience stress-free and environmentally friendly. Elevate your pool experience with this eco-conscious, high-performance solution.

Key Features and Benefits

• Compact Design: Space-saving and sleek, perfect for pool areas with limited room, without compromising performance.
• Operation Down to -10°C: Reliable heating even in colder climates, allowing you to extend your swimming season into the winter.
• Soft Start Technology: Protects your home's electrical system by starting at 0 amps and increasing steadily, reducing power surges.
• Built-in Wi-Fi: Convenient smart app control lets you adjust pool temperatures and settings from anywhere, putting control in your hands.
• Full Stepless DC Compressor: Operates efficiently and quietly, reducing noise for a more peaceful poolside environment.
• Twisted Titanium Heat Exchanger: Delivers 40% higher efficiency for faster, energy-saving heating and cooling.
• Smart & Quick Defrosting: Automatically detects frost accumulation and switches to defrost mode, ensuring uninterrupted performance in cold conditions.
• Eco-Friendly Technology: Uses an electronic expansion valve to optimise refrigerant flow, boosting COP by 20% for sustainable and cost-effective operation.
• Marine-Grade Aluminium Casing: Durable and corrosion-resistant, ensuring long-lasting performance in all weather conditions.
• Heating and Cooling Capability: Switch seamlessly between heating and cooling modes for year-round comfort in your pool.

Eclipse Plus 160 Specifications

• Temperature Set Point Range (°C): 12 ~ 40
• Operating Air Temperature (°C): -10 ~ 43
• Compressor: Full Stepless DC Compressor
• Casing: Marine Grade Aluminium Alloy
• Heat Exchanger: Twisted Titanium Heat Exchanger
• Power Supply: 240V/1Ph
• Electrical Connection: 15A Plug
• Rated Input Power (kW): 0.38 ~ 2.33
• Rated Input Current (A): 1.66 ~ 10.1
• Maximum Input Current (A): 13.5
• Sound Level at 1m dB(A): 41.2 ~ 54.9
• Sound Level at 10m dB(A): 21.2 ~ 34.9
• Advised Water Flow (L/Min): ±20% 100
• Water Connection (mm): 40
• Net Weight (kg): 70
• Net Dimensions (L x W x H mm): 780 x 710 x 656

Performance Conditions:

• Air 27°C / Water 27°C / Humidity 80%:
• Heating Capacity (kW): 16.5
• COP Range: 15.2 ~ 7.2
• Air 15°C / Water 26°C / Humidity 70%:
• Heating Capacity (kW): 11.7
• COP Range: 7.2 ~ 5.1
• Air 35°C / Water 28°C / Humidity 80%:
• Cooling Capacity (kW): 7.3

What's Included

• Madimack Eclipse Plus Pool Heat Pump (model-specific)
• 4x Rubber Feet
• Water Union
• Drainage Kit

Warranty

Madimack stands behind the quality of its products with robust warranty coverage for the Eclipse Plus range:

• Heat Exchanger: 25 years
• Compressor: 5 years
• Parts: 4 years
• On-Site Labour: 1 year from date of purchase

Resources

Madimack Eclipse Plus Brochure

Madimack Eclipse Plus Manual
