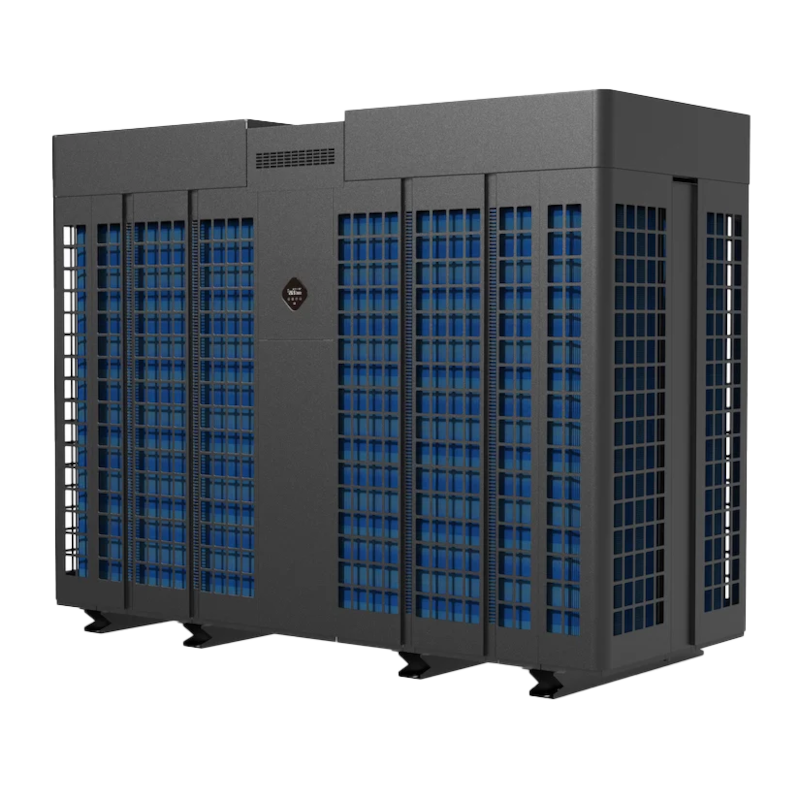

Madimack Elite Max AA 600 60kW Commercial Pool Heat Pump

Overview

The Madimack InverELITE Max is the ultimate solution for commercial pool heating, engineered to meet the demands of large aquatic facilities while minimising energy costs. With industry-leading energy efficiency and a C.O.P. of up to 16.1, the InverELITE Max ensures reliable, eco-friendly heating and cooling, even in challenging climates.

This powerful commercial heat pump features a robust marine-grade aluminium or stainless steel casing, providing durability and resistance to harsh environmental conditions. The dual defrost system and twisted titanium heat exchanger guarantee uninterrupted operation and longevity, even in temperatures as low as -15°C. With Wi-Fi connectivity and RS485 integration, the InverELITE Max seamlessly adapts to modern facility management systems for effortless control and monitoring.

Ideal for aquatic centres, hotels, and other commercial settings, the InverELITE Max offers smart energy solutions like heat recovery, dehumidification, and bespoke system designs, ensuring the best performance while reducing environmental impact. Experience precision, power, and reliability with the InverELITE Max—the premier choice for commercial pool heating and cooling.

Key Features and Benefits

• Ultra-High Energy Efficiency: Achieve a C.O.P. of up to 16.1, significantly reducing operating costs while maintaining superior heating performance for large pools.
• Dual Defrost System: Ensures uninterrupted operation in colder climates with smart defrosting capabilities, providing reliable performance down to -15°C.
• Robust Construction: Available in marine-grade aluminium or stainless steel casing for superior durability, even in harsh environmental conditions.
• Twisted Titanium Heat Exchanger: Designed for commercial use, offering higher efficiency and longevity in high-demand settings.
• Heating and Cooling Modes: Seamlessly switch between heating and cooling to maintain ideal water temperatures year-round.
• Wi-Fi and RS485 Connectivity: Enables remote monitoring and integration with facility management systems for streamlined operation.
• Environmentally Friendly Refrigerant: Utilises R410A or other eco-friendly options to reduce environmental impact without compromising efficiency.
• Smart Energy Solutions: Includes heat recovery and dehumidification options, maximising energy use and enhancing facility comfort.
• Wide Operating Range: Operates efficiently in extreme temperatures (-15°C to 43°C), ensuring reliable service across varied climates.
• Customisable System Design: Tailored solutions to meet the unique needs of commercial aquatic facilities, ensuring optimal performance and cost-effectiveness.

Elite Max 600 Specifications

• Temperature Set Point Range (°C): 12 ~ 40
• Operating Air Temperature (°C): -10 ~ 43
• Compressor: DC Inverter Compressor
• Casing: Aluminium Alloy or Stainless Steel (Optional)
• Heat Exchanger: Twisted Titanium Heat Exchanger
• Fan Direction: Vertical
• Power Supply: 415V 3Ph/50Hz
• Rated Input Power (kW): 2.13 ~ 8.53
• Rated Input Current (A): 3.08 ~ 12.36
• Maximum Input Current (A): 19
• Sound Level at 1m dB(A): 53.0 ~ 61.0
• Sound Level at 10m dB(A): 33.0 ~ 41.0
• Advised Water Flow (L/Min): ±20% 280 ~ 500
• Water Connection (mm): 75
• Net Weight (kg): 243
• Net Dimensions (L x W x H mm): 1000 x 1110 x 1260

Performance Conditions:

• Air 27°C / Water 27°C / Humidity 80%:
• Heating Capacity (kW): 60
• COP Range: 6.2 ~ 16.0
• Average COP at 50% Speed: 10.5
• Air 15°C / Water 26°C / Humidity 70%:
• Heating Capacity (kW): 40.1
• COP Range: 4.7 ~ 7.7
• Average COP at 50% Speed: 6.8
• Air 35°C / Water 28°C / Humidity 80%:
• Cooling Capacity (kW): 24

Warranty

Madimack stands behind the quality of its products with robust warranty coverage for the Elite Max range:

• Heat Exchanger: 25 years
• Compressor: 5 years
• Parts: 2 years
• On-Site Labour: 1 year from date of purchase

Resources

Madimack Elite Max Brochure

Madimack Elite Max Manual
