PUDU T300 Industrial Delivery Robot

Overview

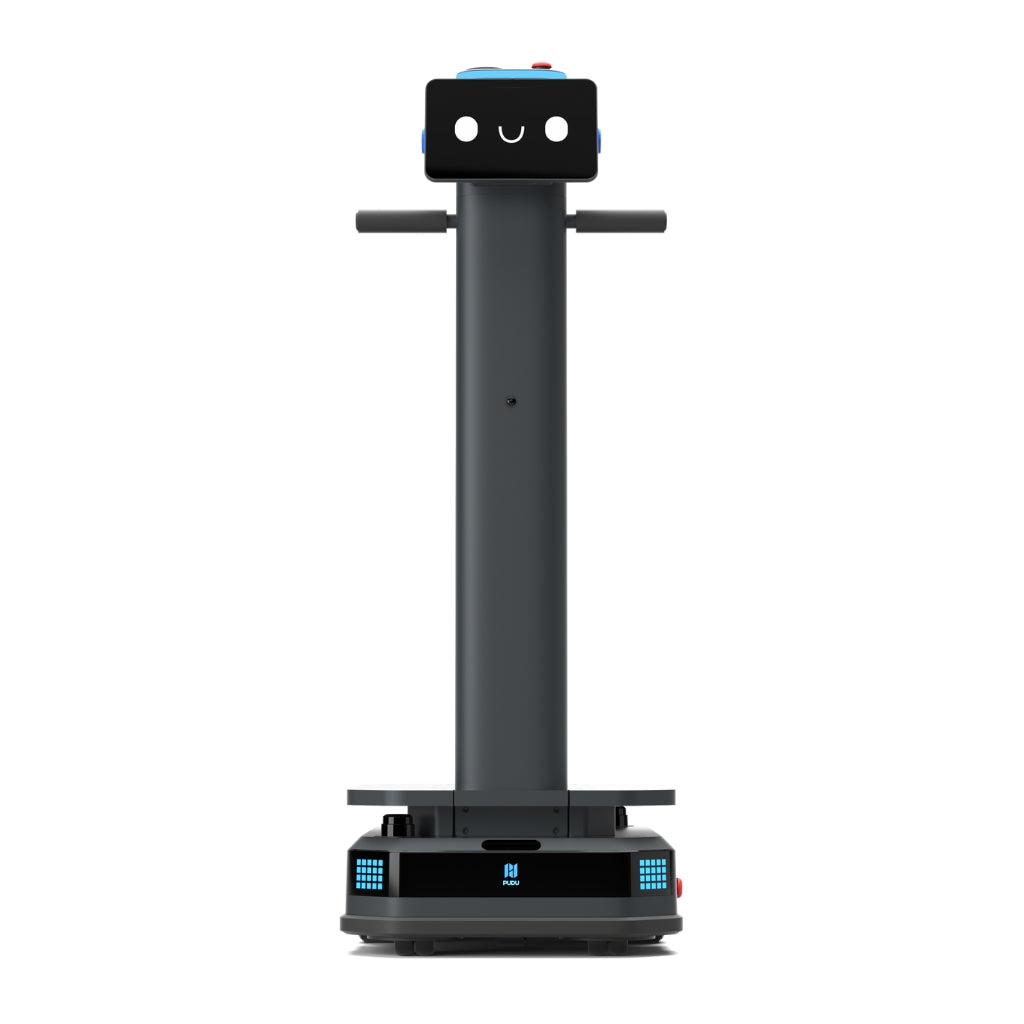

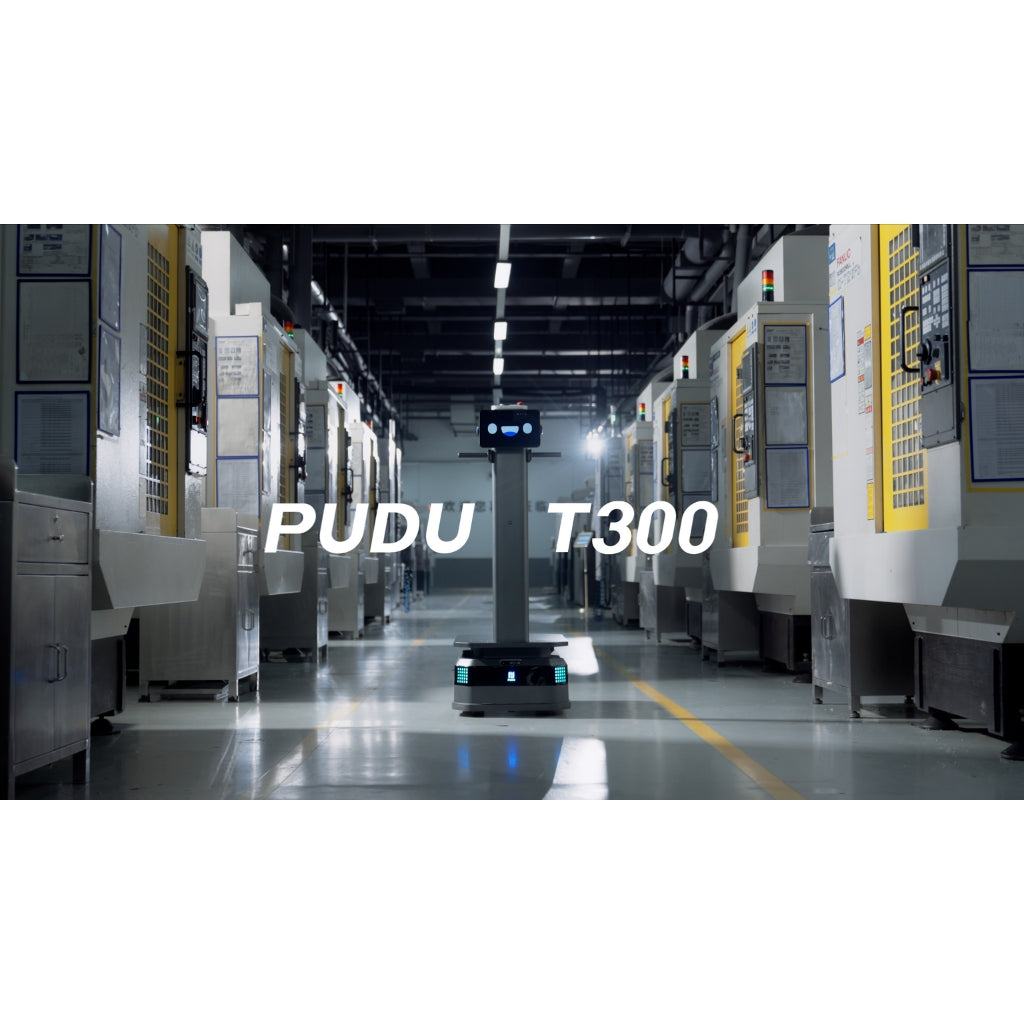

The PUDU T300 is a robust industrial delivery robot engineered to streamline logistics in factories, warehouses, and manufacturing hubs. Built to handle heavy loads and navigate complex environments, the T300 allows your team to focus on high-value tasks by automating the transport of raw materials and finished goods.

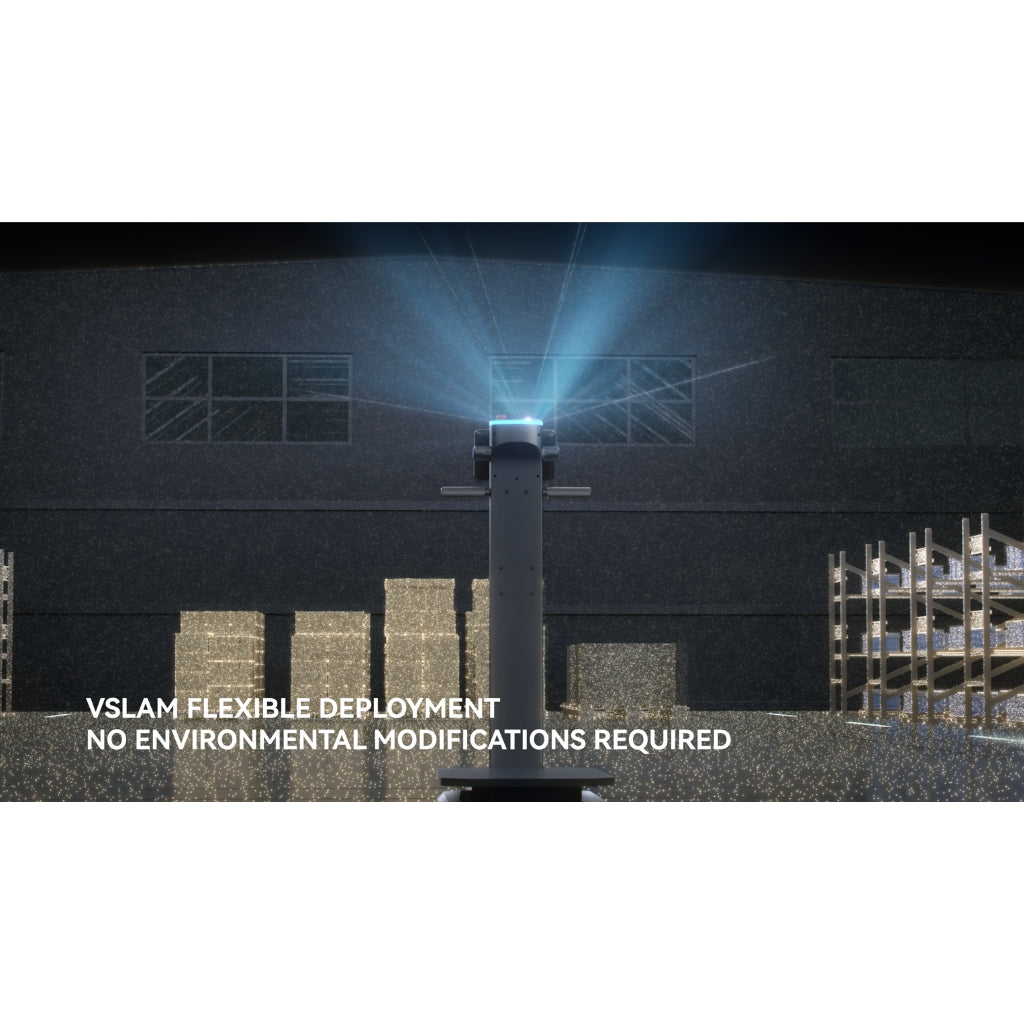

Unlike traditional AGVs that require magnetic tape or QR codes on the floor, the T300 utilises advanced VSLAM+ technology to map your facility quickly and navigate freely. With a compact design that fits through narrow 60cm aisles and the ability to cross thresholds, it is the flexible, deploy-and-go solution for modernising your production line without facility remodelling.

Configuration Options

The T300 is highly versatile and can be configured for different industrial tasks:

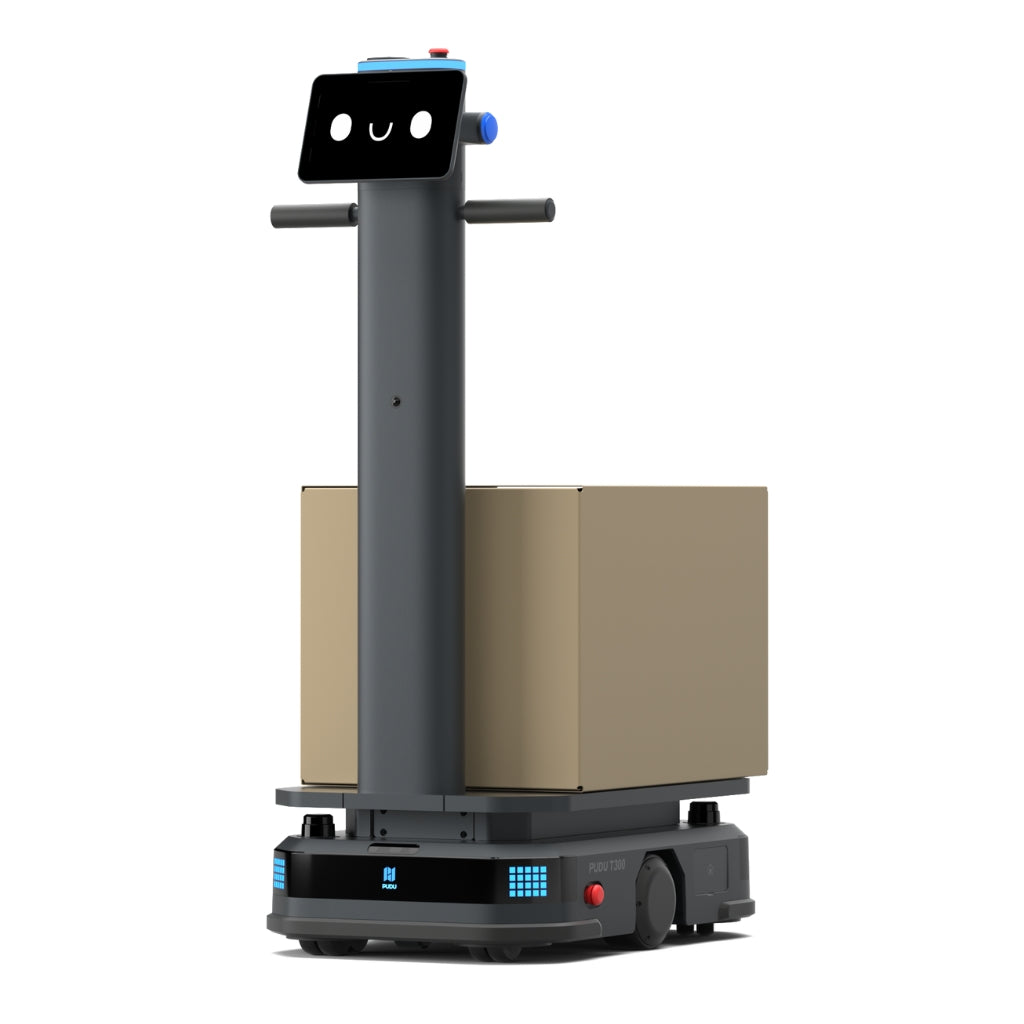

• Standard Mode: A flat loading platform for transporting boxes, raw materials, or loose items directly on the chassis.

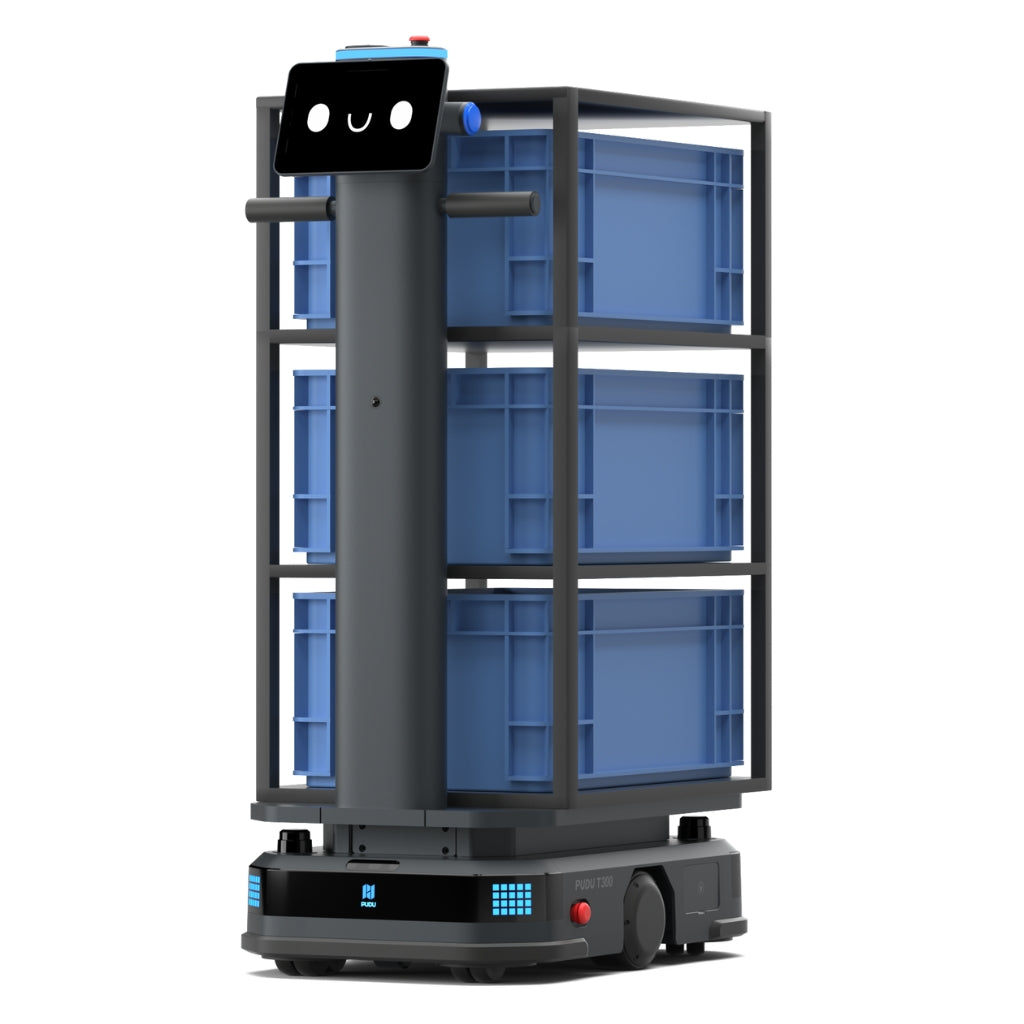

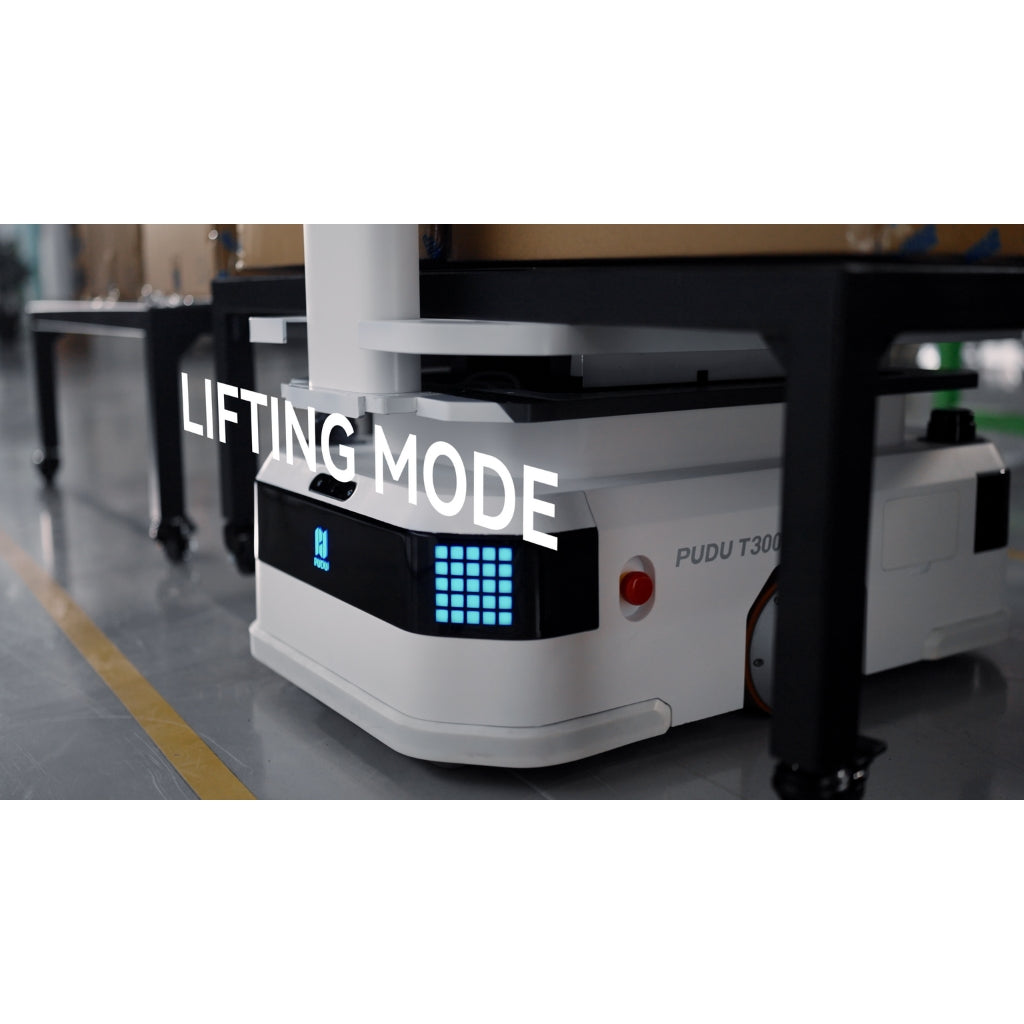

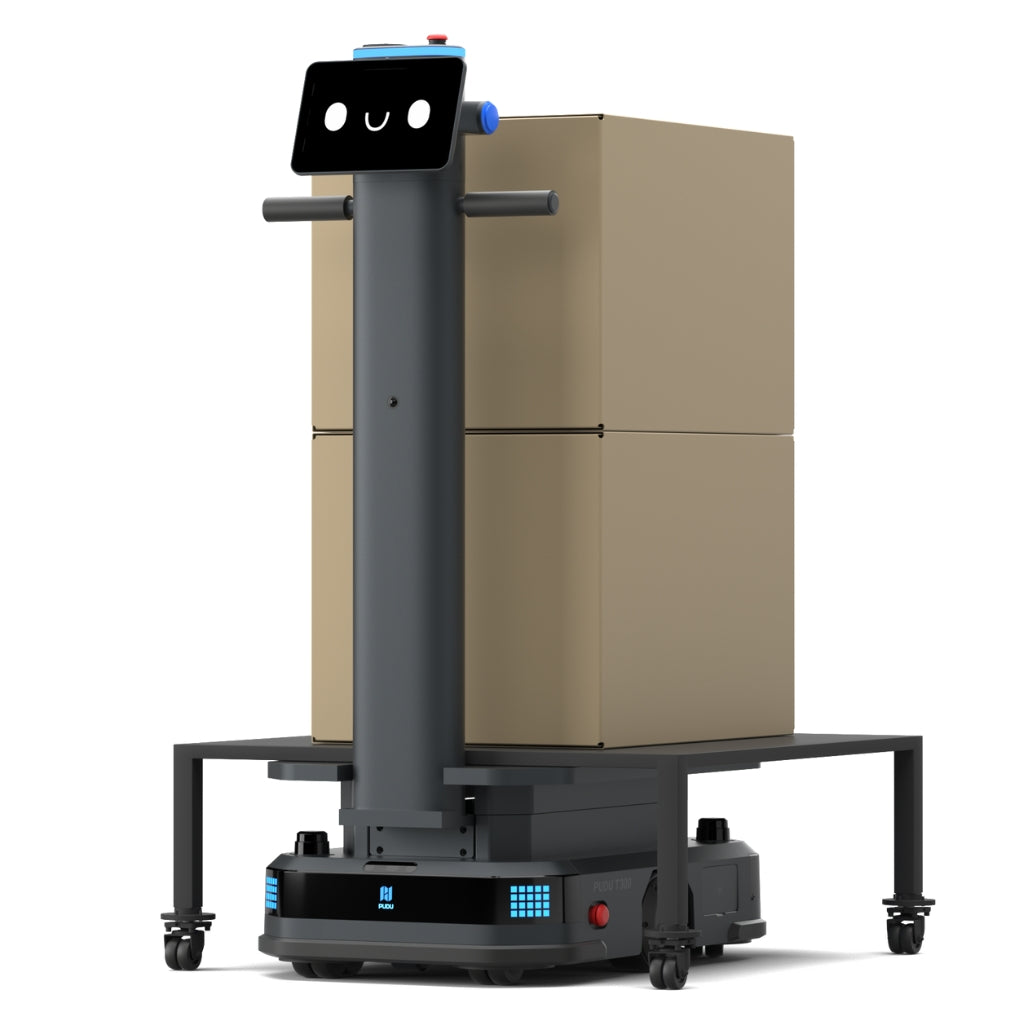

• Lifting Mode: Equipped with an automated lifting mechanism to drive underneath racks or shelves, lift them, and transport the entire unit autonomously.

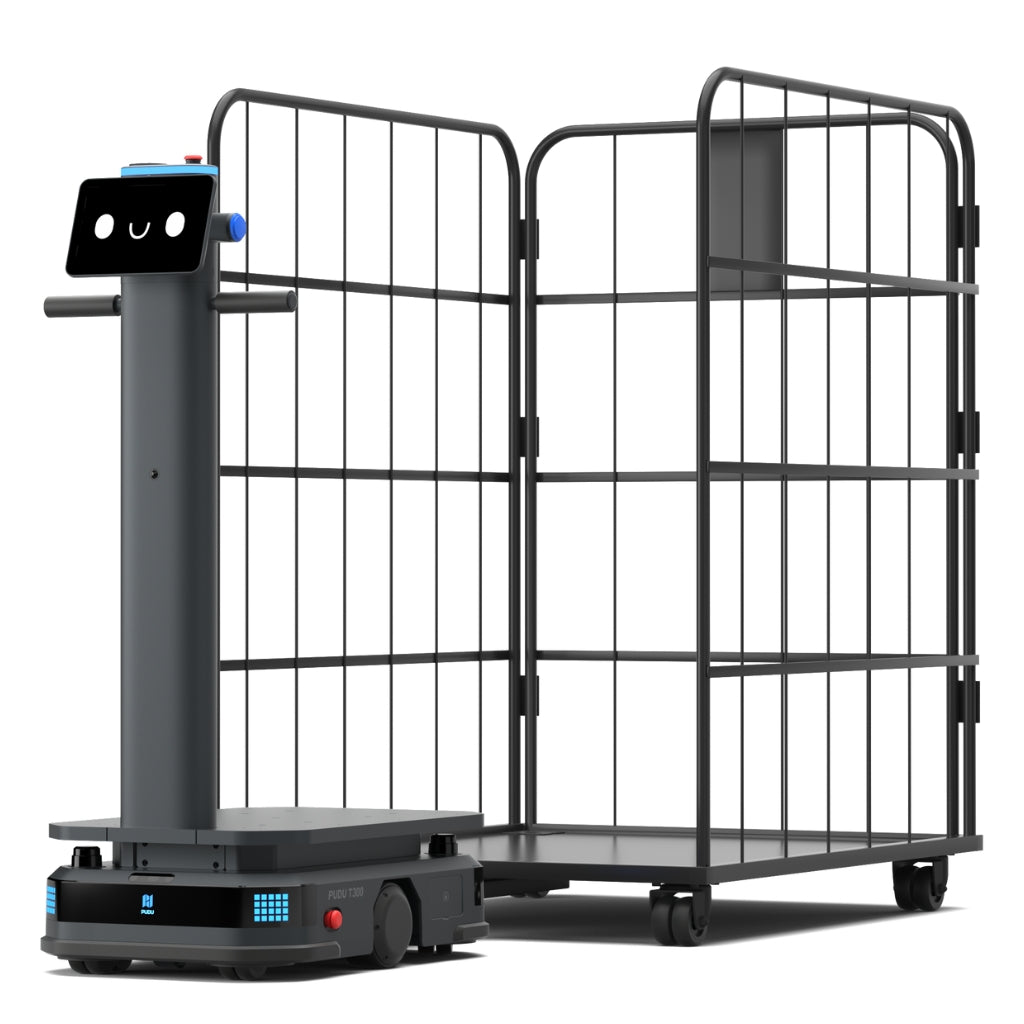

• Towing Mode: Capable of towing wheeled carts, allowing you to integrate the robot with your existing factory trolleys.

Features

• Heavy-Duty 300kg Capacity: Effortlessly transports raw materials, heavy parts, and finished goods, reducing the physical strain on your workforce.

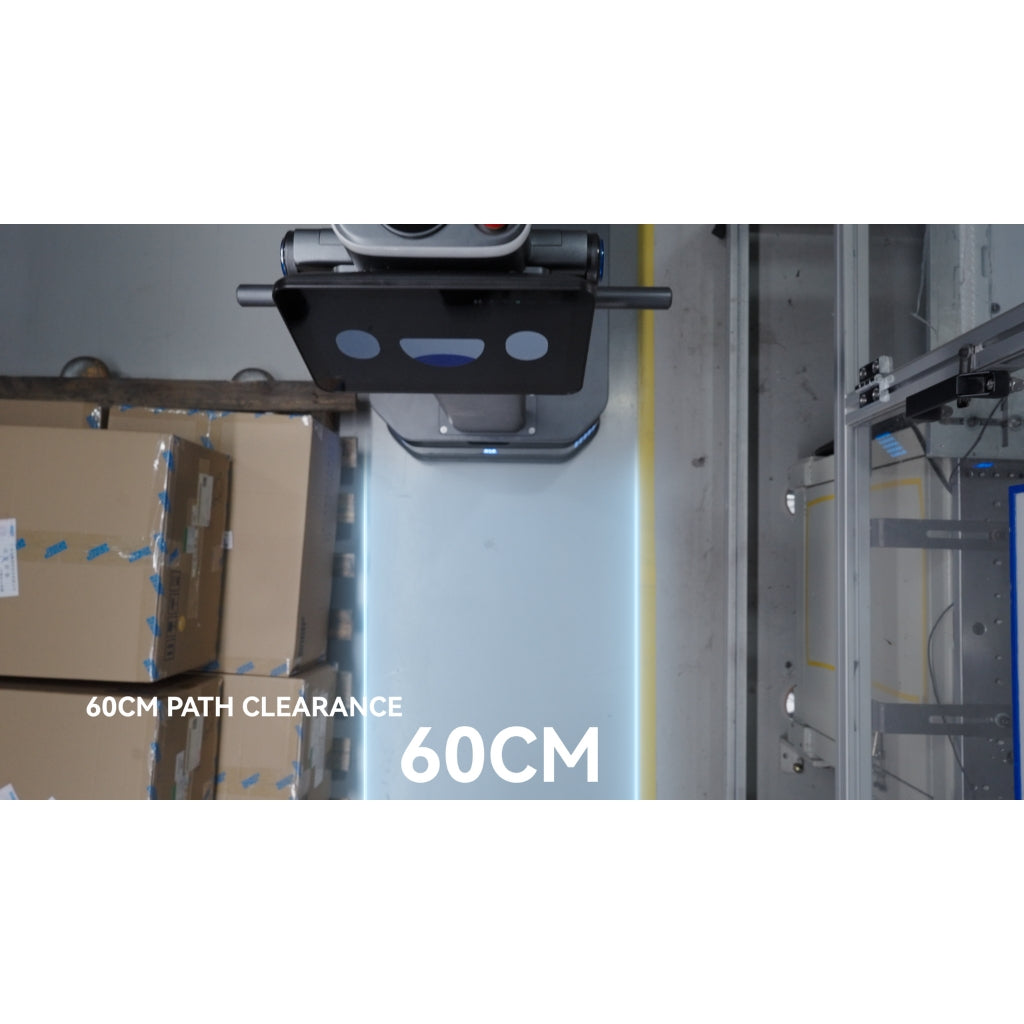

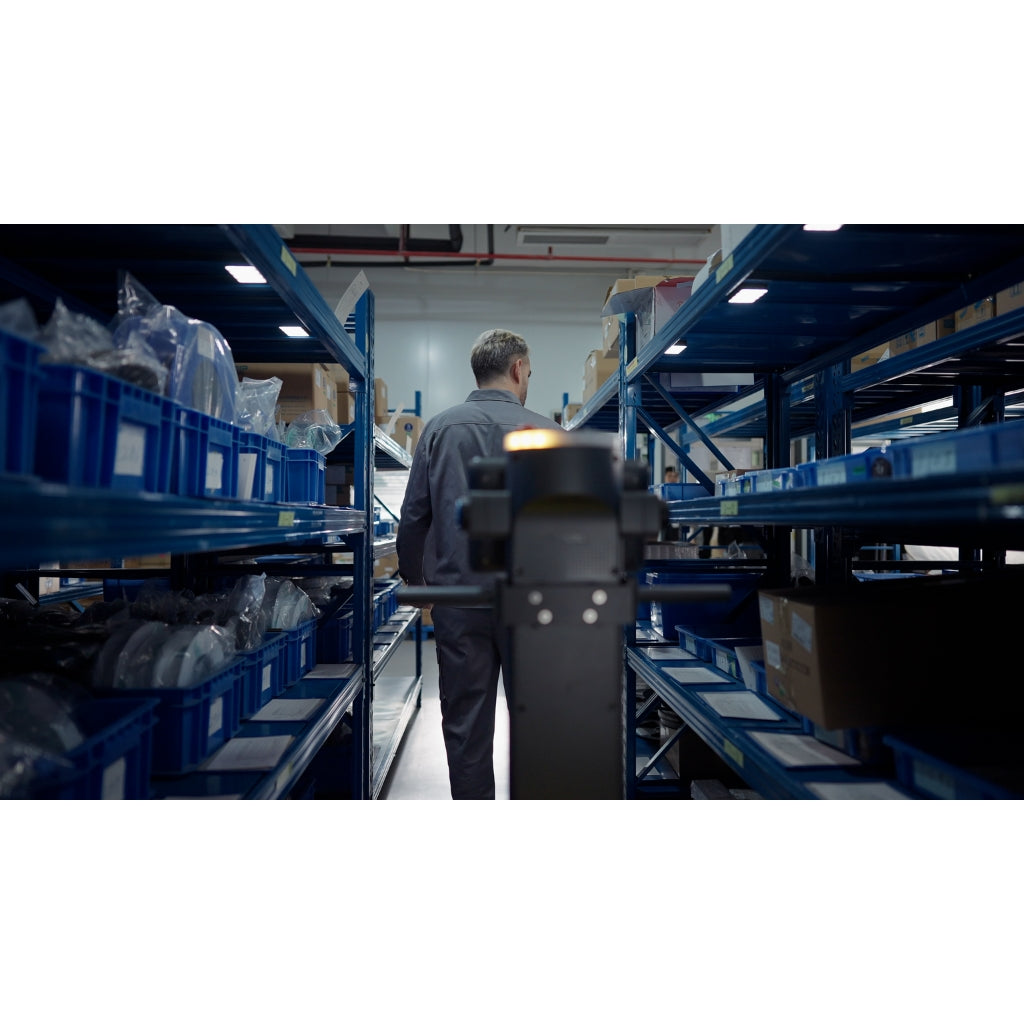

• Navigate Narrow Spaces: Features a slim chassis requiring only 60cm of path clearance, allowing it to manoeuvre in tight corridors where forklifts cannot go.

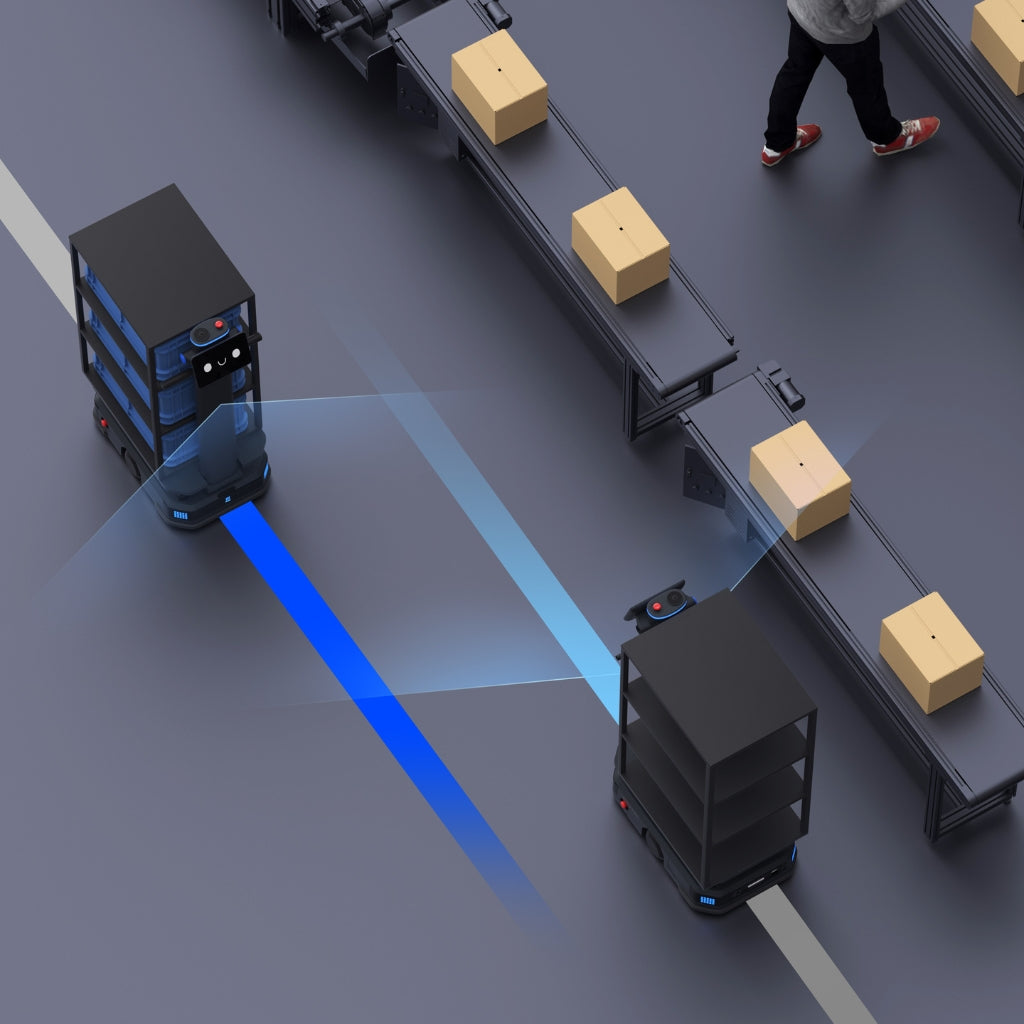

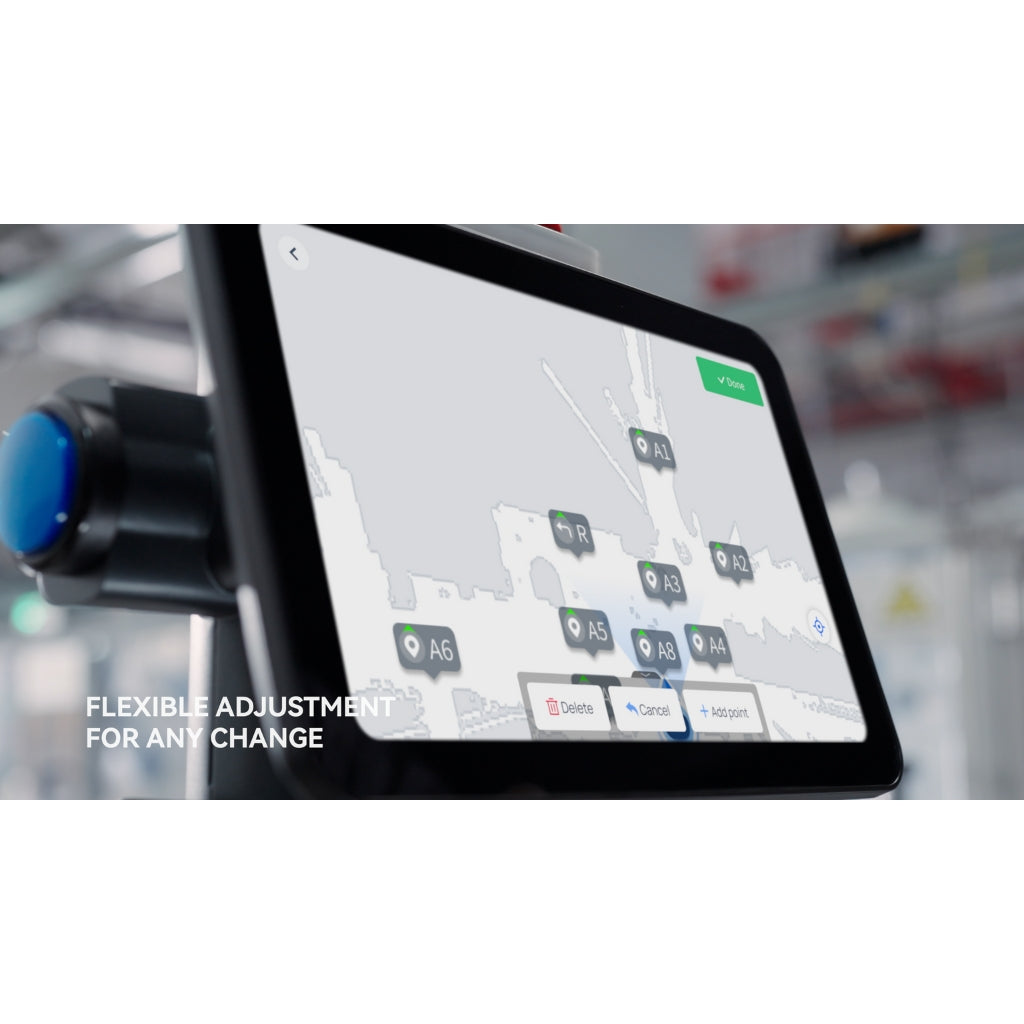

• VSLAM+ Flexible Navigation: Utilises visual positioning (marker-free) to adapt to changing layouts quickly. Maps up to 200,000㎡ with ceilings up to 30m high.

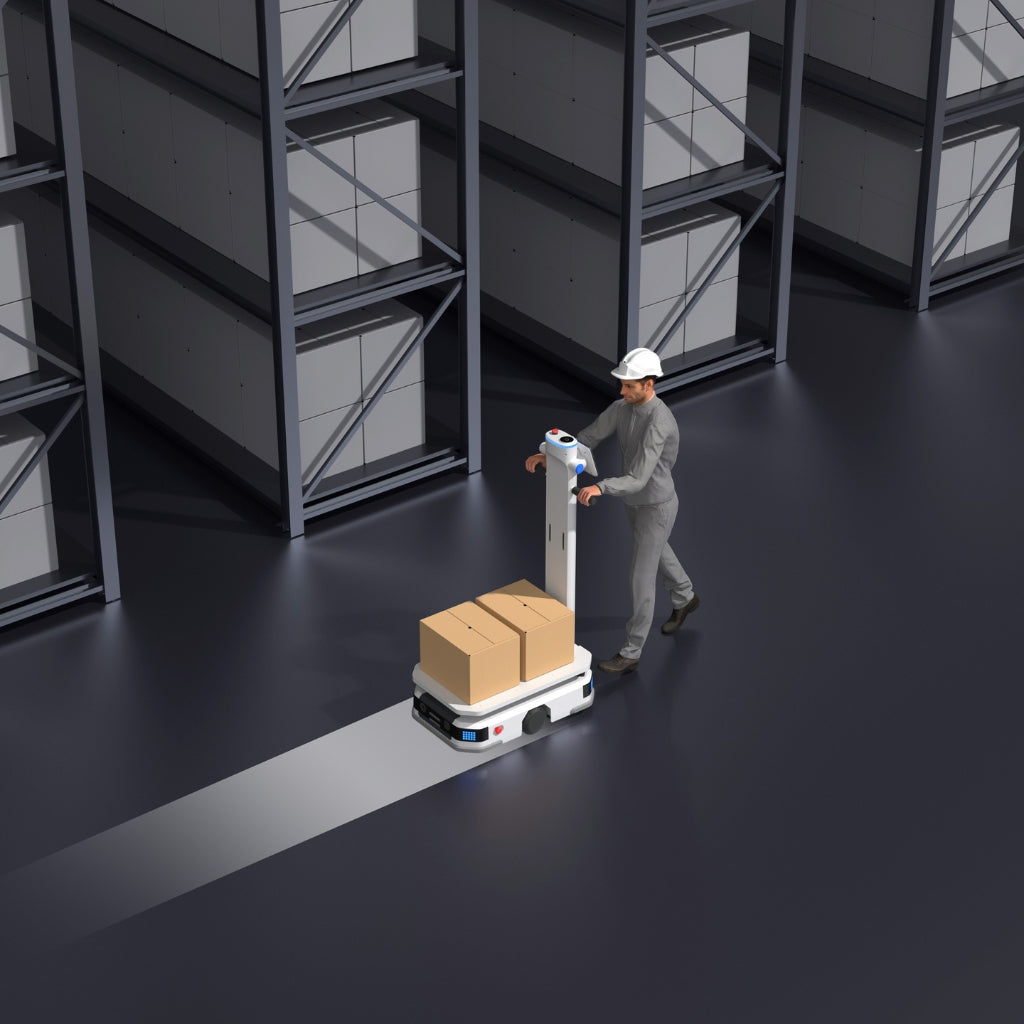

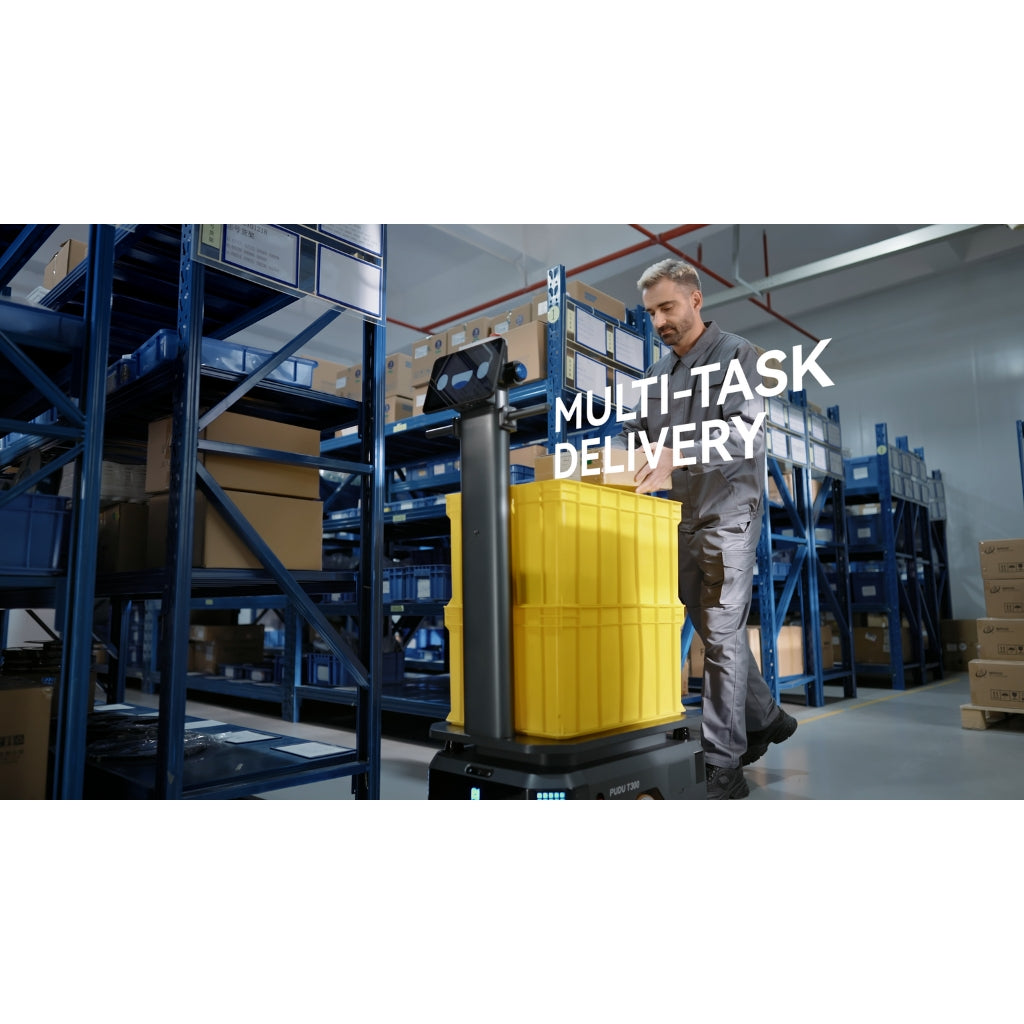

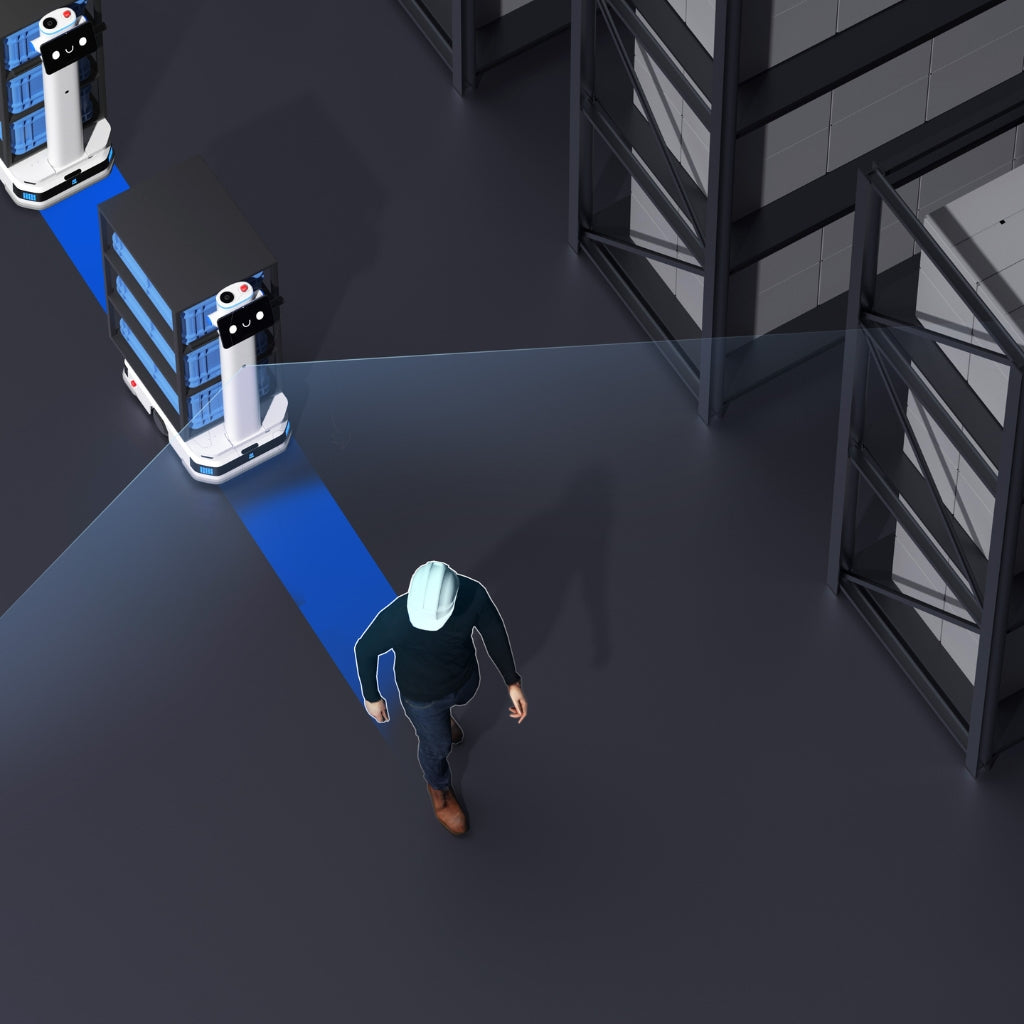

• Versatile Delivery Modes: Supports "Auto-Delivery" for point-to-point transport, "Follow Mode" for material picking, and "Power-Assist" for easy manual control.

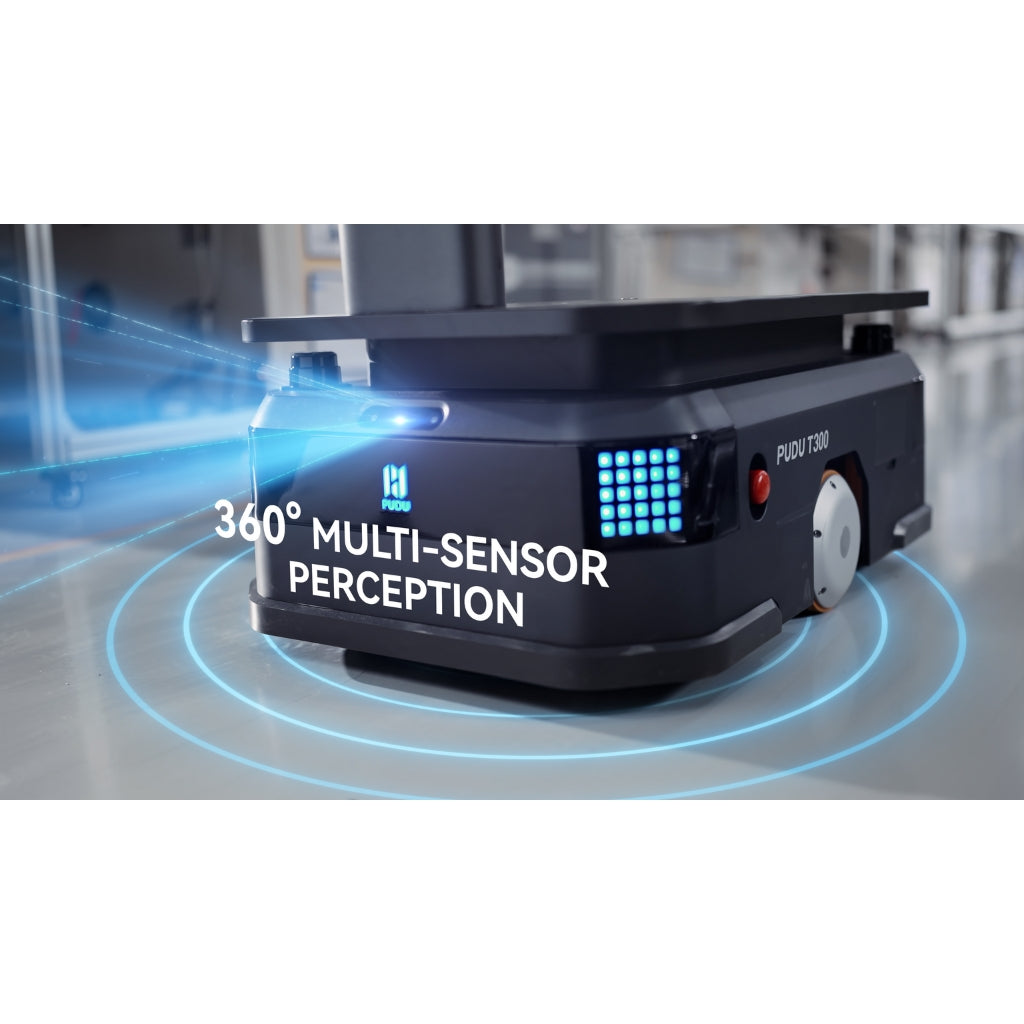

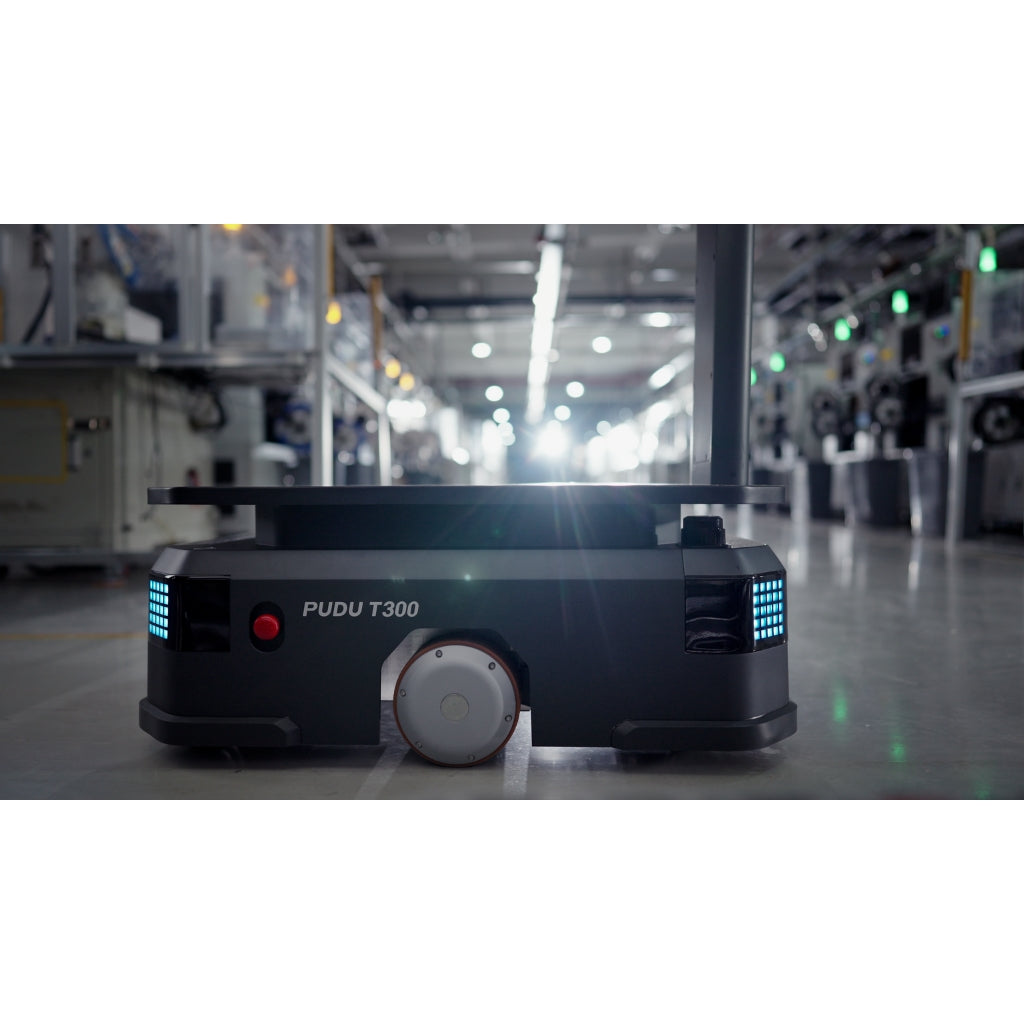

• Smart Obstacle Avoidance: Equipped with Lidar, depth cameras, and collision sensors to detect hanging objects and low obstacles, ensuring ISO 3691-4 standard safety.
• Threshold Crossing Ability: Smoothly crosses 20mm height thresholds and 35mm wide grooves, ensuring stable movement across different flooring sections.

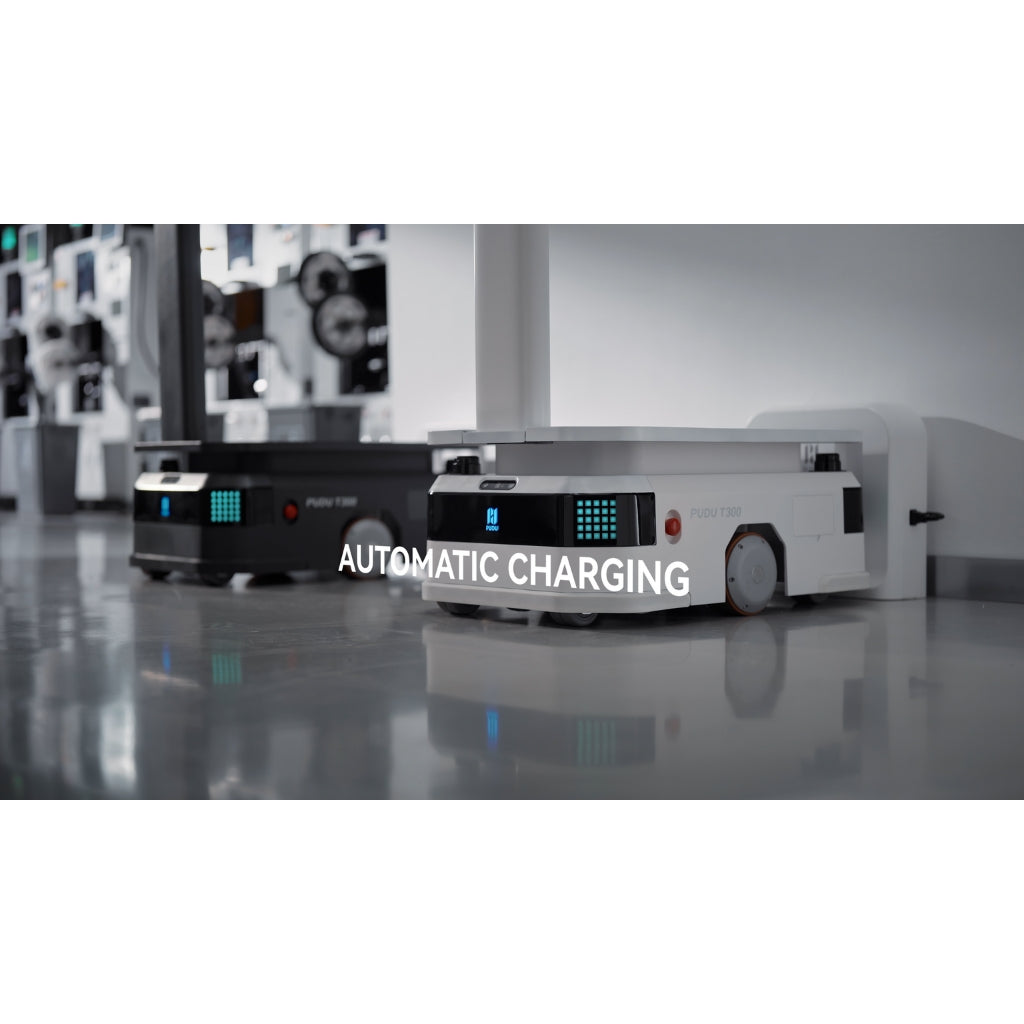

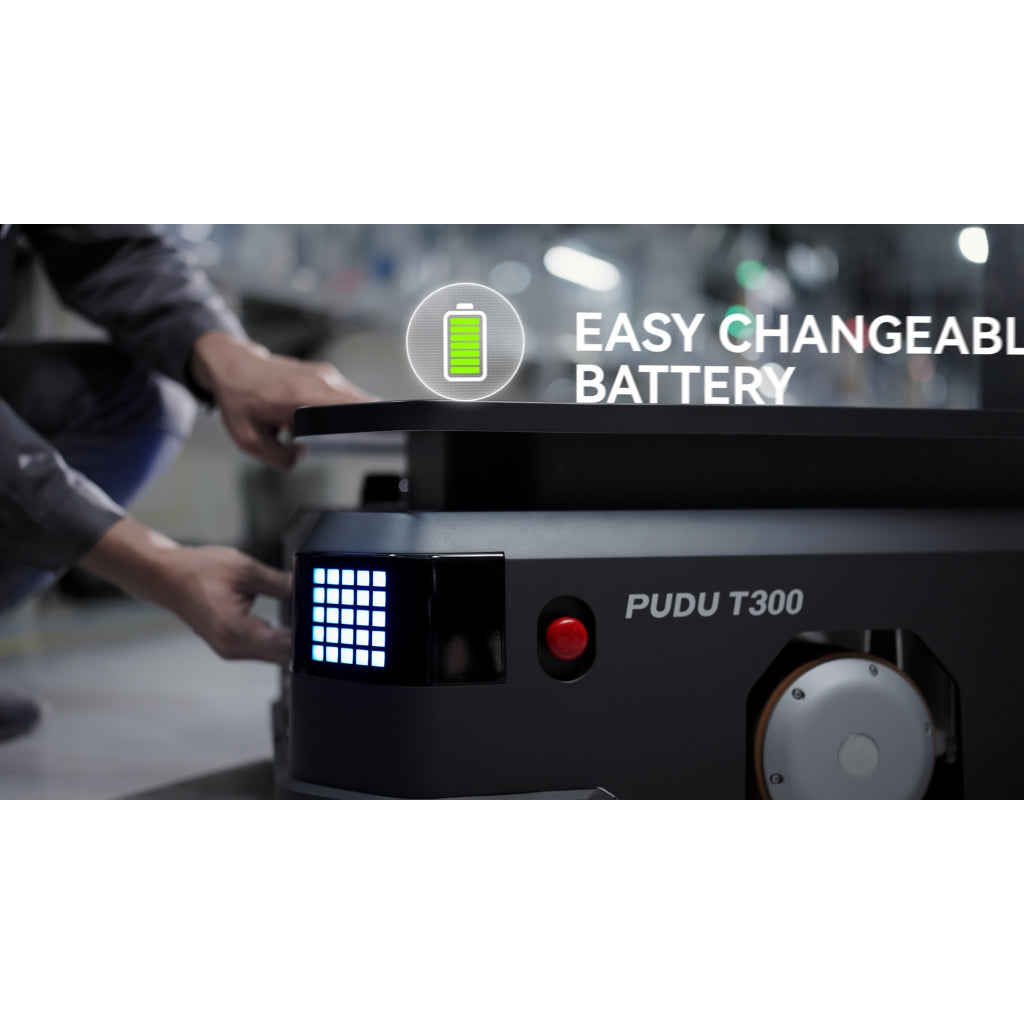

• 24/7 Operations: Runs for up to 8 hours continuously and recharges in just 2 hours. Supports battery swapping for non-stop round-the-clock workflows.

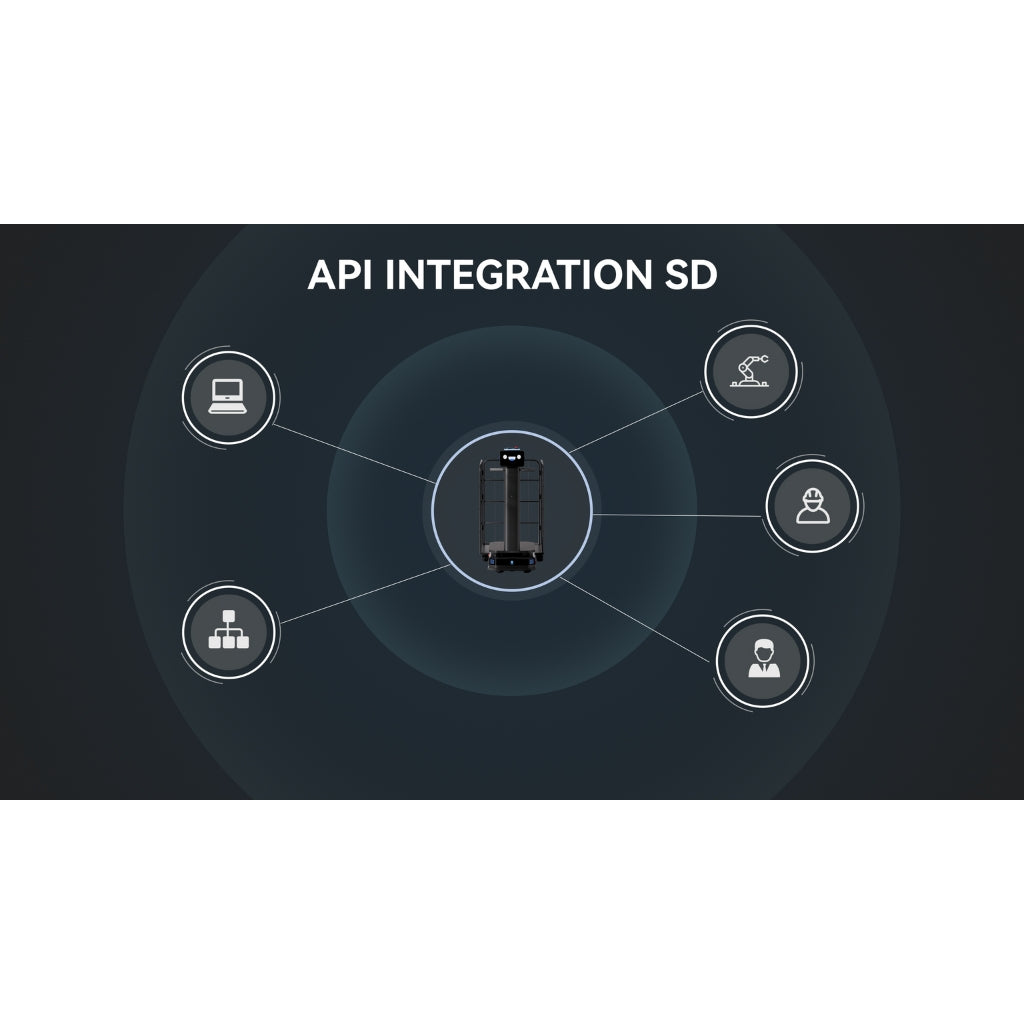

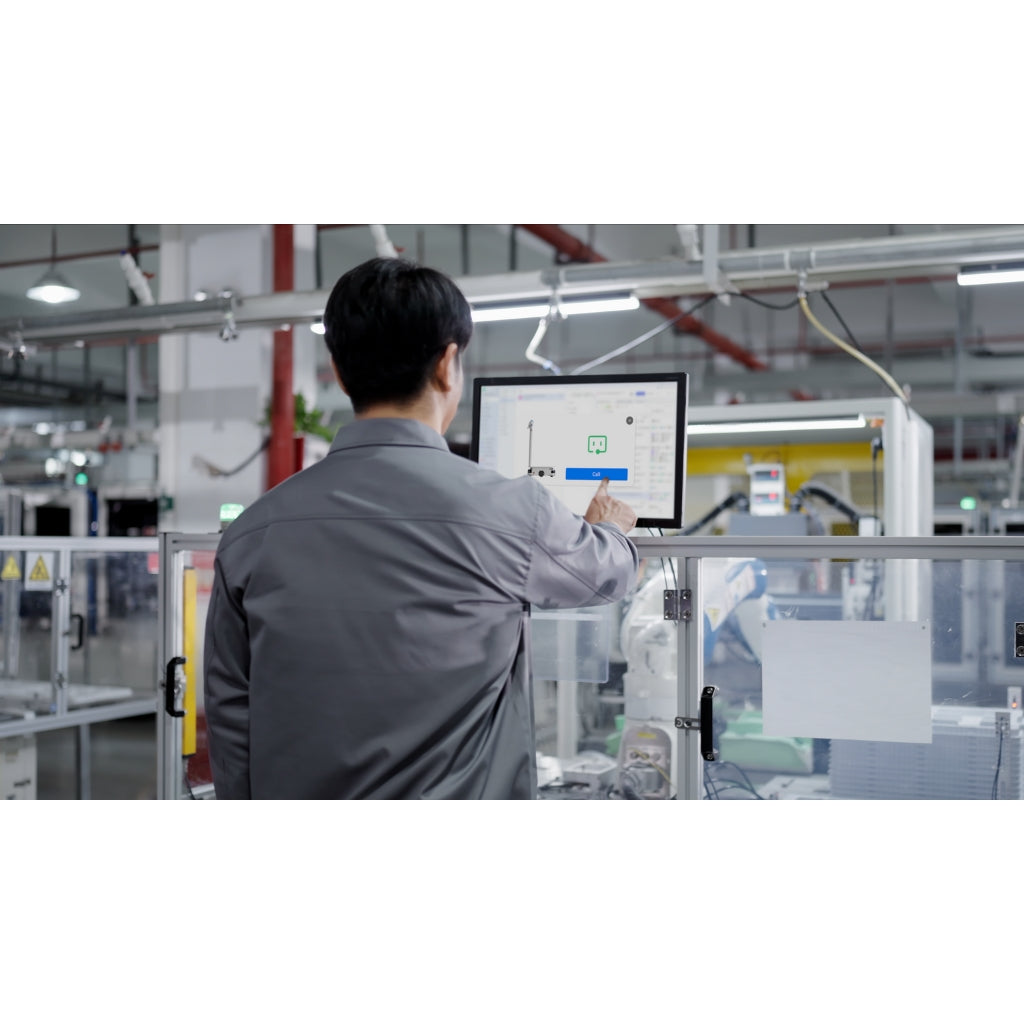

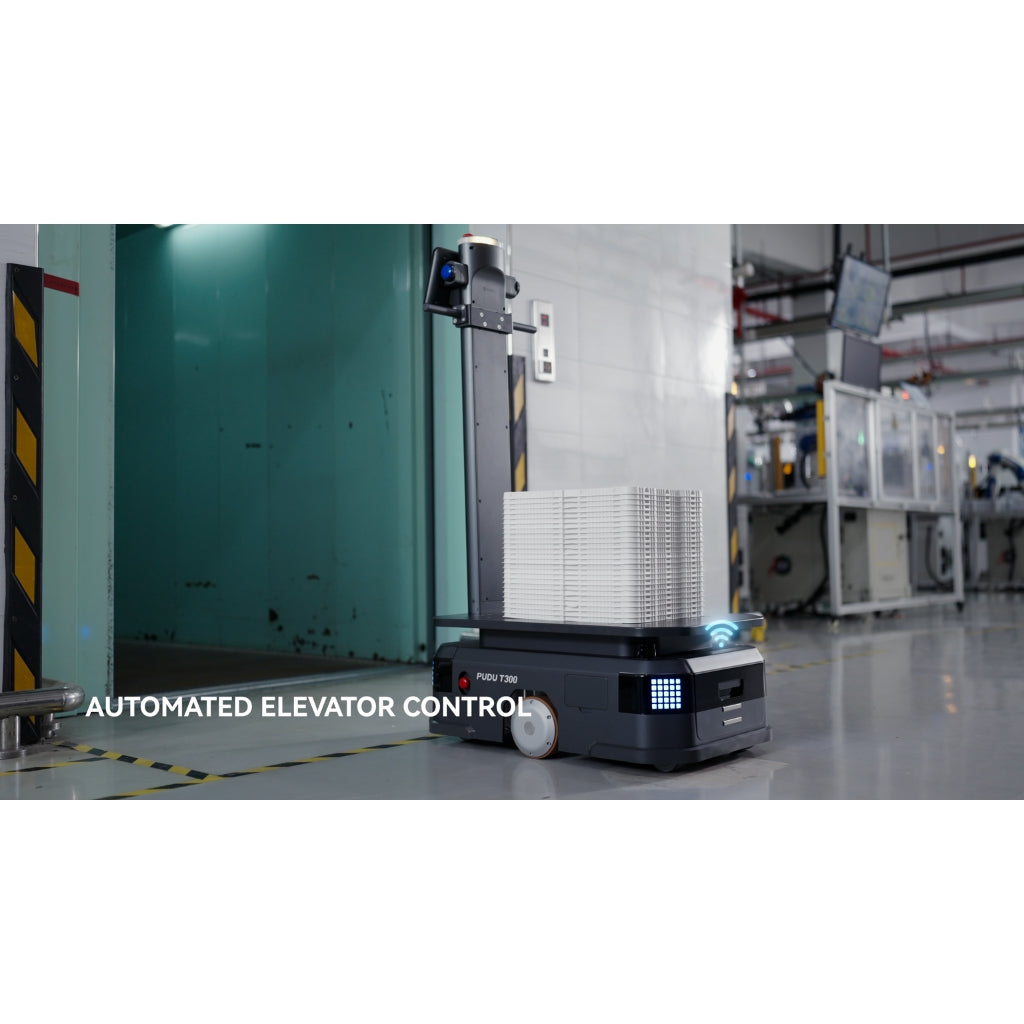

• IoT & Facility Integration: Seamlessly connects with automatic doors, elevators, and production management systems for a fully automated loop.

Outcomes

• Increased Productivity: Automates repetitive hauling tasks, significantly reducing downtime between production stages.
• Improved Workplace Safety: Minimises the risk of injuries associated with manual pushing and lifting of heavy carts in busy warehouse environments.
• Rapid Deployment: Deploys 70% faster than traditional AGVs, with no need for environmental modifications or floor tape.
• Flexible Application: Compatible with various attachments including shelves, secure cages, lifting units, and towing hooks to suit any workflow.

• Dimensions (L × W × H): 835 × 500 × 1350 mm
• Machine Weight: 65 kg (Standard) / 81 kg (Lifting Model)
• Max Load Capacity: 300 kg
• Battery Life: Up to 12 hours (unloaded), 6 hours (fully loaded)
• Charging Time: Approx. 2 hours (0% to 90%)
• Cruise Speed: Max 1.2 m/s
• Path Clearance: Min 60 cm
• Crossing Ability: 20mm height / 35mm width
• Navigation: VSLAM & LiDAR SLAM
• Safety Standard: ISO 3691-4 Compliant
